As seen on TV’s Wicked Tuna & featured on working vessels across the globe! The Versatile GX5 can be loaded with a variety of lines to accommodate most depths.

The GX™ series have become the new workhorse & standard in perfectly engineered anchoring systems at the right price. Featuring all Australian Made 316 stainless and machined & anodized 6061 T-6 aluminium construction, “Real Italian” transmissions, triple sealed bearings, twin shaft bearing systems, machined slimline ‘fast change’ collars, & an all new emergency release as standard on all models. Motors are once again custom manufactured exclusively for LSM and are pre-rigged with twin leads for easy installation. From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are Made to Get Wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All backed by our famous 5 + Life Warranty.

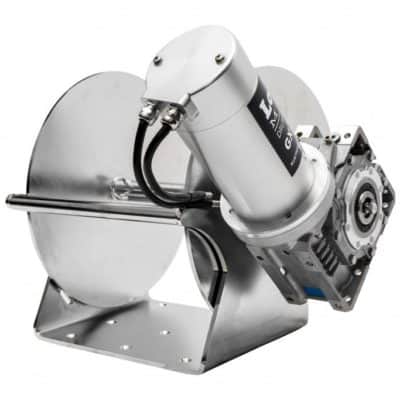

The GX5 is an absolute horse of a unit, boasting a 420mm drum and gearbox much larger than neccessary for a lifetime of faultless anchoring. The GX5 is the answer for large capacity trailer boats & commercial fishermen. This model has been created for XHD loads and structural integrity with a 37mm solid machined shaft, 10mm frame, and 25mm solid frame stiffener. Thanks to the well oversized gearing and motor this unit can easily be fitted to boats to 15m.

• Huge 2300W (12V) or 2800W (24v) Motor
• Perfect for wet wells and deck mounts
• Boats to 20m
• Fast Drop/Retrieval Rating
• Sealed IP68 Motor and Oversized Gearbox
• Manufactured in Australia
• ELITE-5-FIT-UP_1

Ideal for boats to 12m

• 2300w (12v) or 2800w (24v)  Purpose Built Permanent Magnet Motor, 4 Brush Design
• IP68 (Fully Waterproof)
• Extra Heavy Duty Structural Design
• Machined Solid 37mm 316SS Spool Shaft
• High Polished 8mm 316SS Cradle Construction
• 25mm Solid Frame Stiffener
• Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive)
• Machined Roller Bearing Cover (triple sealed)
• No Paint or Silicon Sealants
• No Mild steel outputs or fittings
• Fully Waterproof Machined Motor (LSM Exclusive)
• Pre-rigged with tinned cable leads
• Machined (not cast) Fast change Bearing Collar
• Perfect for Deck Mounting
• Capacity 140m of 12mm Rope + 12m x 10mm SL chain
• Drop/Retrieve up to 129Ft (40m) per minute
• 12 Adjustable Gear/Motor Mounting Positions
• Manual Release Feature in the event of power loss
• 7000kg Holding Power at Anchor-No need to tie off
• Massive 2.5T Max Pull (empty drum)
• 150kg max recommended working load
• All 316SS and Machined 6160 Alloy Construction
• Italian Made Transmission-Marine Grade Outputs
• Designed and Manufactured in Australia

Each Kit Includes the Following as Standard

• Winch
• 400 Amp Solenoid
• Genuine MP Marine Grade Circuit Breaker (made in the USA)
• Anodized Alloy Toggle Switch Panel
• All Nuts, Bolts, & Washers Needed for Installation
• Warranty Information, Switch Panel Template, Installation Instructions
