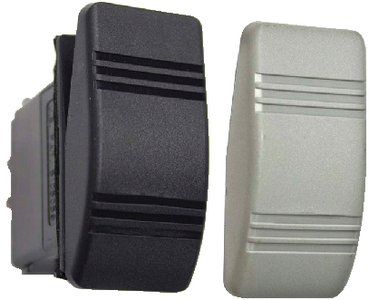

SWITCH-CON3 ON-OFF-ON SPDT B-G

Description

• Non-corrosive plastic construction


• Protects against dust and prolonged spray to IP66 and IP68 standards


• Meets UL 1500, ISO 8846 ignition protection requirements


• Supplied with neoprene mounting gasket


• Includes both gray & black removable actuators


• Brass blade terminals, silver contacts


• Rated: 20 amps @ 12V DC


• ON in parenthesis (On) indicates a momentary position

Positions: (On)/Off/(On)
Color: Gray & Black
Type: SPDT
Terminals: 3 Blade
:
:

KMS Part# SIE RK19690TP
DMP Part# 26-3863
Vendor # RK19690TP
