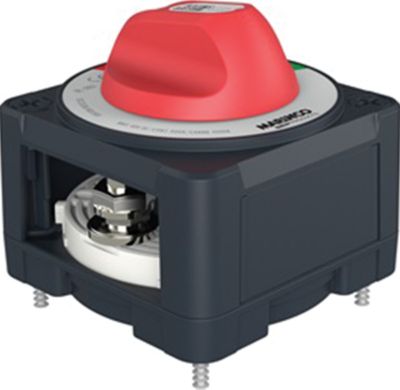

SWITCH BAT 400A EZ MT SP PRO INSTALLER REPLACES P/N 69-770EZ

Description

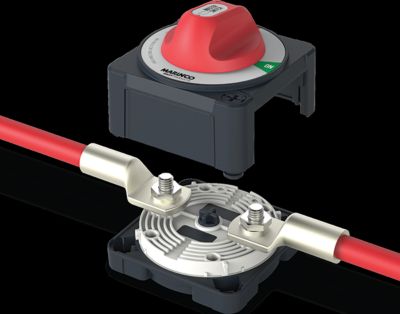

These revolutionary battery switches allow you to wire from the front. Installation and cabling is easy and accessible. With their shared interconnection height, EZ-Mount battery switches cluster directly with the Pro Installer Busbar Range, resulting in the fast, compact installations. Optimized cable access makes installation a breeze. Pro Installer switches set the benchmark with outstanding ergonomics, intuitive look/feel, and are engineered from the finest materials to withstand the harsh marine environment. All ratings, footprints and features of the EZ-Mount switch match the high quality of our standard switches.

Tested to UL1107 ignition protection, CE
Tinned copper 3/8″ (10mm) studs
Stainless steel washers/nuts
400A Continuous / 600A 5 mins Intermittent / 1500A 10 secs Cranking
Waterproof to IP66
Removable knob allows isolation during servicing
3 removable sideplates for protection
Industry standard 3.85″ x 3.85″ footprint
