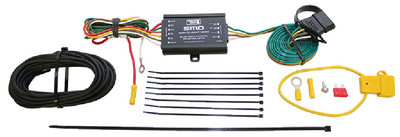

STANDARD POWERD TAIL LIGHT CON

Description

Adapts import and domestic tow vehicles with 3-wire systems to tow trailers equipped with 2-wire systems. Powers trailer lighting directly from the tow vehicle’s battery, keeping additional current draw away from sensitive vehicle circuits.

• Features advanced circuit protection to protect the tow vehicle’s wiring systems from short-circuit or mis-wire situations


• Designed to operate with both incandescent and LED trailer lighting systems


• 16 ga. Single 18″ input wires for stop lamp, tail light, left turn & ground circuits (red, yellow, brown & white)


• 16 ga. Single 60″ input wire for left turn circuit (green)


• 16 ga. Bonded 60″ output wires with a molded 4-flat car-side connector


• Tin plated .187 4-flat connector terminals for improved current capacity and corrosion resistance

Description: Standard Duty w/ Wiring Kit. 11.2 Amp Max Load
Case: 6
:
:
:
:

KMS Part# SCP 58011
DMP Part# 36-2718
Vendor # 50-58011
