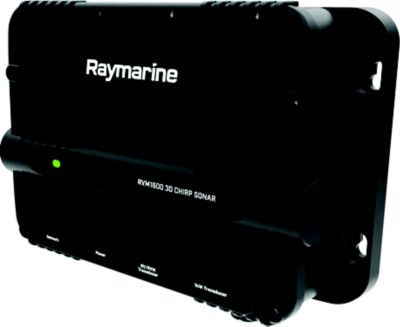

RVM1600 3D CHIRP SONAR MODULE

$2,082.69

: $2,125.19

Order over $500? Apply for Financing
Apply Now >>


Raymarine E70665 RVM1600 Sonar Module, Power output: RealVision MAX high CHIRP sonar channel: 600 Watts RMS, Traditional dual channel CHIRP channel: 1kW RMS, Sonar channels: RealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz),1kW CHIRP Port: 42 – 250kHz (Transducer dependent), Current: 2.4 A Peak; 1.2 A RMS (Maximum) @ 12 V dc, 12 V / 24 V dc , Power consumption: 10.4 W (Maximum)

Manufacturer: RAYMARINE

SKU: 152-E70665 Categories: , , , , ,

Description

RealVision MAX starts with high-performance CHIRP transducers, upgraded with larger elements and increased power output for extended fishfinder range performance. Also offers signal processing and faster ping rates for improved fishfinder imagery and target identification. The most elusive fish are easily identifiable with high-contrast RealVision MAX sonar color palettes. Upgraded with a more powerful 600-watt High CHIRP frequency which allows you to track the bottom in depths greater than 1,200′ and find fish beyond 400′ .

CHIRP DownVision®: Delivers a photo-like fishfinder view of the world beneath your boat. See bottom structures and fish targets with amazing detail
CHIRP SideVision®: Sonar expands your underwater horizon with full port and starboard coverage of fish, bait and underwater structure, allowing you to see more fish from a greater distance than traditional side scanning sonars
RealVision® MAX 3D:Fishfinder lets you see below, behind and to the sides of the boat to provide a new perspective of the underwater world that simplifies locating and staying on structure
Connections: 1x 3-pin Male power connector, 1x 10-pin RayNet network connector, 1x 25-pin RealVision Max 3D / RealVision 3D transducer connector, 1x 11-pin 1kW transducer connector

KMS Part# RAY E70665
Vendor Part# E70665

Additional information

Weight 5.7 lbs
Dimensions 13.5 × 8.7 × 4.9 in
