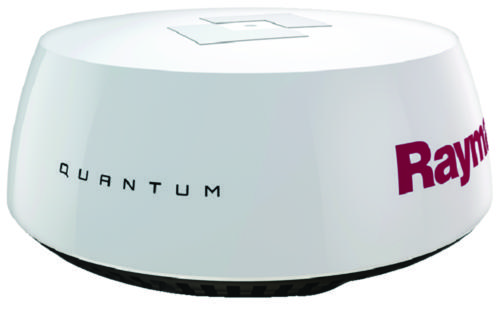

Raymarine T70243 Quantum™ Wireless CHIRP Radome w/Wi-Fi & Data w/Power & Data Cable

Description

Quantum Radar is the world’s first compact marine radar to use CHIRP pulse compression technology. Setting a new standard for solid state marine radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi makes installation easy and Quantum’s energy effcient and lightweight design provides safe radiated emissions and reduced power consumption.

• • Input Voltage: 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)
  • Networking: Wi-Fi or wired Ethernet (RayNet)
  • Antenna Type: Patch Array
  • Power Consumption: Transmit mode 17W; standby mode 7W; sleep mode 2W
  • Max. Range Scale: from 1/16 to 24 nautical miles
  • Transmit Frequency: 9354 to 9446 MHz
  • Peak Power Output: 20W
  • Duplexer: Circulator
  • Pulse Widths (3 dB): 40 ns to 14.7 s
  • CHIRP Lengths: 400 ns to 20 s
  • CHIRP Bandwidth: Up to 32 MHz
  • IF Bandwidth: 26 MHz
  • Noise: Less than 4 dB
  • Beamwidth (nominal): 4.9° horizontal and 20° vertical
  • Polarisation: Horizontal
  • Waterproofing: IPX6
