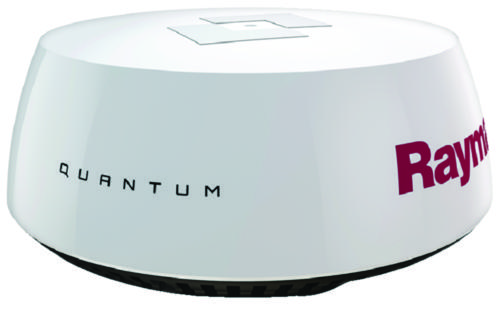

QUANTUM Q24C 18″ RADAR WITH

Description

Quantum Radar is the world’s first compact marine radar to use CHIRP pulse compression technology. Setting a new standard for solid state marine radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi makes installation easy and Quantum’s energy effcient and lightweight design provides safe radiated emissions and reduced power consumption.

• • Input Voltage: 12 or 24 Vdc (Min: 10.8V, Max: 31.2 V)

• • Networking: Wi-Fi or wired Ethernet (RayNet)

• • Antenna Type: Patch Array

• • Power Consumption: Transmit mode 17W; standby mode 7W; sleep mode 2W

• • Max. Range Scale: from 1/16 to 24 nautical miles

• • Transmit Frequency: 9354 to 9446 MHz

• • Peak Power Output: 20W

• • Duplexer: Circulator

• • Pulse Widths (3 dB): 40 ns to 14.7 ?s

• • CHIRP Lengths: 400 ns to 20 ?s

• • CHIRP Bandwidth: Up to 32 MHz

• • IF Bandwidth: 26 MHz

• • Noise: Less than 4 dB

• • Beamwidth (nominal): 4.9° horizontal and 20° vertical

• • Polarisation: Horizontal

• Waterproofing: IPX6

Model: Q24C
Description: 18″ Wi-Fi & Data w/10m Power Cable
:
:
:
:

KMS Part# RAY E70210
DMP Part# 40-4519
Vendor # E70210
