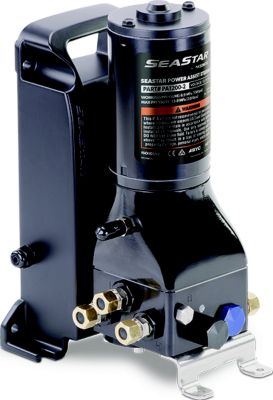

POWER ASSIST UNIT-SEASTAR 12V

Description

The SeaStar Power Assist unit can be installed on new SeaStar steering installations or as an easy retro-fit to existing systems. Suitable for most boat types, the SeaStar Power Assist uses an electronically controlled hydraulic pump to provide on-demand power steering. It is installed into the hydraulic steering circuit between the helm and steering cylinder. The Power Assist unit is powered from the boat’s battery and adjusts automatically to the input voltage (12V or 24V). Dramatically reduces steering effort. Wall or Floor Mount. Compatible with power purge system. Return to manual in failure mode. Suitable for use with autopilots. Wiring harness included. Ignition protected (SAE J-1171). ABYC, CE, NMMA, ISO 10592 Approved.

Dramatically reduces steering effort
OEM or retro-fit
Simple add-on to an existing SeaStar steering system (from 1.4 to 2.4 SeaStar helms)
Suitable for use with autopilots
Wiring harness included
Ignition protected (SAE J-1171) and ABYC, CE, NMMA, ISO 10592 Approved
12/24 Volts (automatically recognized)
1000psi MAX system peak pressure (500psi working load)
Relief pressure 2000 psi
MAX current draw = 50 amps
Typical current draw = ~3 amps
Purple ignition wire MAX current draw = 1 amp
