Description

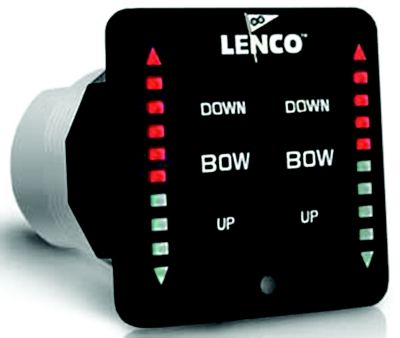

This LED tactile switch kit has a shortened bezel for consoles which require less depth to mount. Functionality is built into the externally mounted control box and must be mounted separately. LED indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.
Simple, quick, Plug & Play installation
Instant response
Built-in retractor
Low profile design
Self-contained, sealed key pad & solid state control box with waterproof Plug & Play Deutsch connectors
36″ power pigtail for control box
2-1/16″ hole cut-out size, overall key pad size of 2.75″ x 2.75″
2.33″ clearance required from the back of the key pad’s mounting location
2 high-intensity LED Indicator displays show the exact position of your trim tabs at all times
Photo Eye for optimum viewing in all light conditions
Backlit key pad for optimum viewing at night
Self-Check feature
3 year warranty
