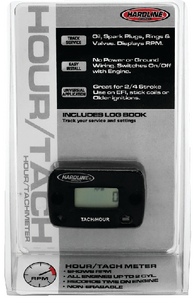

HOUR/TACH METER – ALL ENGINE

Description

Surface mounted inductive meter provides what today’s power-sports user need and expect from hour tach meters. Hour/Tach meters have become the most cost effective method of performing service. Knowing what to service and when, is the key to a successful preventative maintenance program for your motorcycle, ATV, PWC, boat and generator. Meter displays can be read at all times. The hour/tach meter shows total hours accumulated and RPM’s when the engine is running. When the engine is off the meter shows total hours accumulated. There is no clicking like mechanical meters. Installation is easy with simple patented one wire hook-up. Solid state electronics, modern LCD, superb environmental durability and enhanced functionality offer today’s leading OEM’s the best of all possibilities without sacrifice to performance, operation, or budget.

• Has the same features as hour meter plus adjustable input tachometer feature.


• Easy Installation no power or ground required.


• Works on gas engines up to 2 cylinders and 16,000 rpm.


• Can be used with fuel Injection engines.


• Number of “Starts” recorded.


• Suitable for all single and twin, two or four cycle gasoline engines operation within specified tachometer firing pattern.


• Pick-up wire length can be trimmed.


• Track the service life of your vehicle – oil changes, valve, adjustments, spark plugs, etc…


• Easy Installation – peel & stick, no wiring necessary just plug and play!


• Operates with new generation 2 or 4 stroke “pen stick” coils.


• No Power Required – Includes 10 year battery sealed inside.


• Includes Log Book


• Records and Displays to 9,999.9 hours


• Hour glass symbol appears and flashes on/off to indicate counting time.


• Automatic Roll over


• Resolution 0.1 hour


• 100% epoxy encapsulated casing resists water


• Warranty one year.


• IP 68 Rating.


• Unit measures 2 1/8″ length x 1 1/2″ wide x 5/8″ high.


• Designed, Assembled and Tested in the USA


• CE Certified

Size: 2-1/8″ L x 1-1/2″ W x 5/8″ H
:
:
:
:
:

KMS Part# HRD HR80612
DMP Part# 26-4583
Vendor # HR-8061-2
