HEATER-DIESEL BULKHEAD-NEWPORT

Description

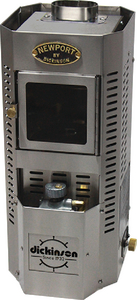

The Newport Bulkhead Mounted Heater is ideal for boats 30′-35′. Small, compact, and bulkhead mounted. An attractive, economical diesel burning heater, providing comfortable, dry heat.

• Requires 3″ diameter chimney parts


• Minimum 4′ or maximum 8′ of chimney is required, a 6′ straight run with no elbows work best


• Chimneys 6′ or longer we highly recommend a barometric damper


• Permanent fresh air vent needed in area of the unit


• Decorative laser cut valve cover


• Creates a dry heat to dry out moisture inside the vessel


• 12v draft assist fan included (can be converted to 24v and 32v). Used for start up and draft assistance on high fire


• Valve is calibrated for diesel but can be re-calibrated for kerosene or stove oil


• 1 turn hot water coil for 5-10 gal can be installed for water heating

Description: w/o 1-Turn Coil
Size: 8-1/2″ W x 19-3/”4 H x 1-1/2″ D
:
:
:
:

KMS Part# DIC 00NEW
DMP Part# 39-8506
Vendor # 00-NEW
