HEATER-DIESEL FLOORMNT-LOFOTEN

Description

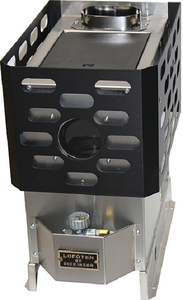

The Lofoten Floor Mounted Heater is ideal for boats 35′-40′. Similar to the Antarctic in performance but with a larger top area, rectangular shape, and a cast-iron lid providing a top cooking surface.

• • Requires 4″ diameter chimney parts

• • Minimum 4′ or maximum 8′ of chimney is required, a straight run with no elbows work best

• • Chimneys 6′ or longer we highly recommend a barometric damper

• • Permanent fresh air vent needed in area of the unit

• • Creates a dry heat to dry out moisture inside the vessel

• • Includes a small cast iron cook top for cooking etc

• • This model has a larger combustion chamber so it produces more heat than the Alaska and Newport heaters

• • 12v draft assist fan included (can be converted to 24v and 32v). Used for start up and draft assistance on high fire

• • Valve is calibrated for diesel but can be re-calibrated for kerosene or stove oil

• 1 turn hot water coil for 5-10 gal or a 2 turn hot water coil for 15-20 gal can be installed for water heating

Size: 10-3/4″ W x 18″ H x 17″ D
:
:
:
:
:

KMS Part# DIC 00LOF
DMP Part# 39-8509
Vendor # 00-LOF
