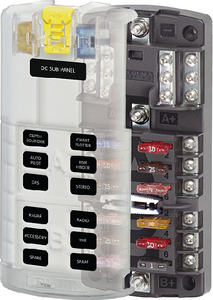

FUSE BLOCK STB SPLITBUS 12CIR

Description

Two isolated 6-circuit fuse blocks with a negative bus. For use when a mix of switched and 24-hour circuits are desired in the same block.

• Common and/or independent source fuse block


• Provides two isolated groups of six ATO^®/ATC^® circuits


• For use with either two isolated batteries or with a single battery providing a mix of 24-hour and switched circuits


• Clear insulating cover satisfies ABYC/USCG insulation requirements and provides storage for two spare fuses


• Accepts ring terminals


• Easy to open, push button latch provides easy access to fuses


• Tin-plated copper buses and fuse clips


• Includes 20 write-on circuit labels


• Fuses sold separately

• Voltage Max. Operating: 32V DC


• Amperage Max. Operating: 30A per circuit 100A total (not to exceed 80A per load group)


• Fuse Type: ATO^® or ATC^® Fuses


• Screw Terminal: #8-32 Screws with captive star lock washer


• Mounting: #8 Screw (M4)


• Recommended Wire Size: Positive Feed: 4-6 AWG (25-16 mm²), Branck Circuits: 10-16 AWG (6-15 mm²)


• Recommended Torque: #10 Stud: 24 in-lb (2.71 N-m), #8 Screw: 18 in-lb (2.03 N-m)

Description: 12 circuits
Stud: Negative Bus: #8-32 stud
Positive Bus: #8-32 stud
:
:
:
:

KMS Part# BLU 5032
DMP Part# 36-9121
Vendor # 5032
