Purchase this Product and Earn 2,544 Reward Points

CombiMaster 12V/3000W-160A 120V

$2,544.95

: $2,596.89

Order over $500? Apply for Financing
Apply Now >>

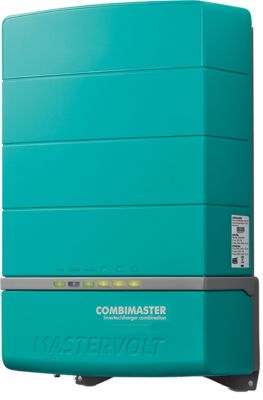

Mastervolt 35513000 Combimaster Inverter/Charger

Manufacturer: Mastervolt

SKU: 469-35513000 Categories: , , ,

Description

Designed with the customer in mind and using the latest technology, the CombiMaster range is all about user-friendliness and reliability. But don’t let that friendly appearance misguide you: the powerful CombiMaster range drives even the heaviest and most sensitive loads with ease!With the CombiMaster, power dips and failures belong to the past. The automatic AC transfer system switches between generator or mains and inverter output, ensuring a constant power supply. Its Power Assist function prevents tripping of the mains fuse in case you’re connected to a weak land line or small generator.The CombiMaster range delivers unmatched performance and value for money. As you would expect from Mastervolt, the CombiMaster is completed with MasterBus, CZone and NMEA 2000 compatible communication, allowing for a broad range of monitoring and system integration options. Remote and Monitoring options:

MasterBus compatible via SmartRemote or EasyView 5 display
CZone / NMEA 2000 compatible via Touch 5 or Touch 10 display
NMEA 2000 compatible via 3rd party multifunctional display Features:
Most compact and lightweight Combi in its class
Reliable, hum-free and longer operation from your batteries
Starts even the heaviest and most sensitive loads
Intelligent 3-step+ battery charger for faster and safer charging
Automatic switching between mains and inverter mode
Power Assist prevents blown mains fuses
Generator compatible
Integrated CZone, MasterBus and NMEA 2000 communication.
Quick installation with heavy duty connections.
E-mark certified

Additional information

AC Input

30 A (switched)

AC Output

55

Battery No-Load Power Consumption

30 W (on mode) / <1 mA (off mode)

Battery Temperature Sensor

Yes

Charge Characteristic

IUoUo, automatic / 3-stage + for wet, Gel / AGM and MLI (configurable)

Charger

160A

Cooling System

Vario-fan

Display Type

LED display

Fuse Type

Yes

Galvanic Isolation

yes

Ground Relay

yes, configurable by mechanical jumper

Humidity Protection

protective coating, max. 95% relative humidity, non-condensing

Input Voltage Range

90140 V

Master Bus Compatible

yes

Maximum Efficiency

93

Maximum Input Current

28 A (adjustable)

No-load Power Consumption (Energy Saving Mode)

10

No-load Voltage (Fully Charged)

300-800 Ah (based on gel batteries, other models may vary)

Output Frequency

60/50Hz (configurable)

Output Waveform

pure sine wave

Overall Dimensions

448 x 284 x 155

Peak Power (30 sec)

4500 W

Power Sharing

yes, allows you to select the AC input setting

Protection Degree

IP23 (vertical mounting)

Protections

over temperature, overload, short circuit, high / low battery voltage

Synchronize with Mains/Generator

yes

Temperature Range (Ambient Temp.)

-25 °C until 60 °C, afnemend > 40

Transfer Frequency Range

40-65 Hz

Transfer Speed

10 ms

Transfer Voltage Range

breed: 70140 V / smal: 90140V

Voltage

12V in 120V out

Watts

3000

Weight

9, 3
