Wise 8WD013-7-710 Offshore Series Standard Pilot Chair Cushions with Adjustable Height Pedestal & Spider Mount

Description

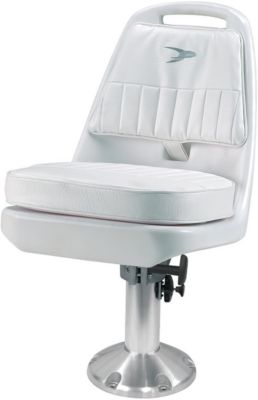

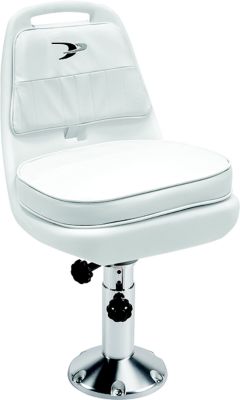

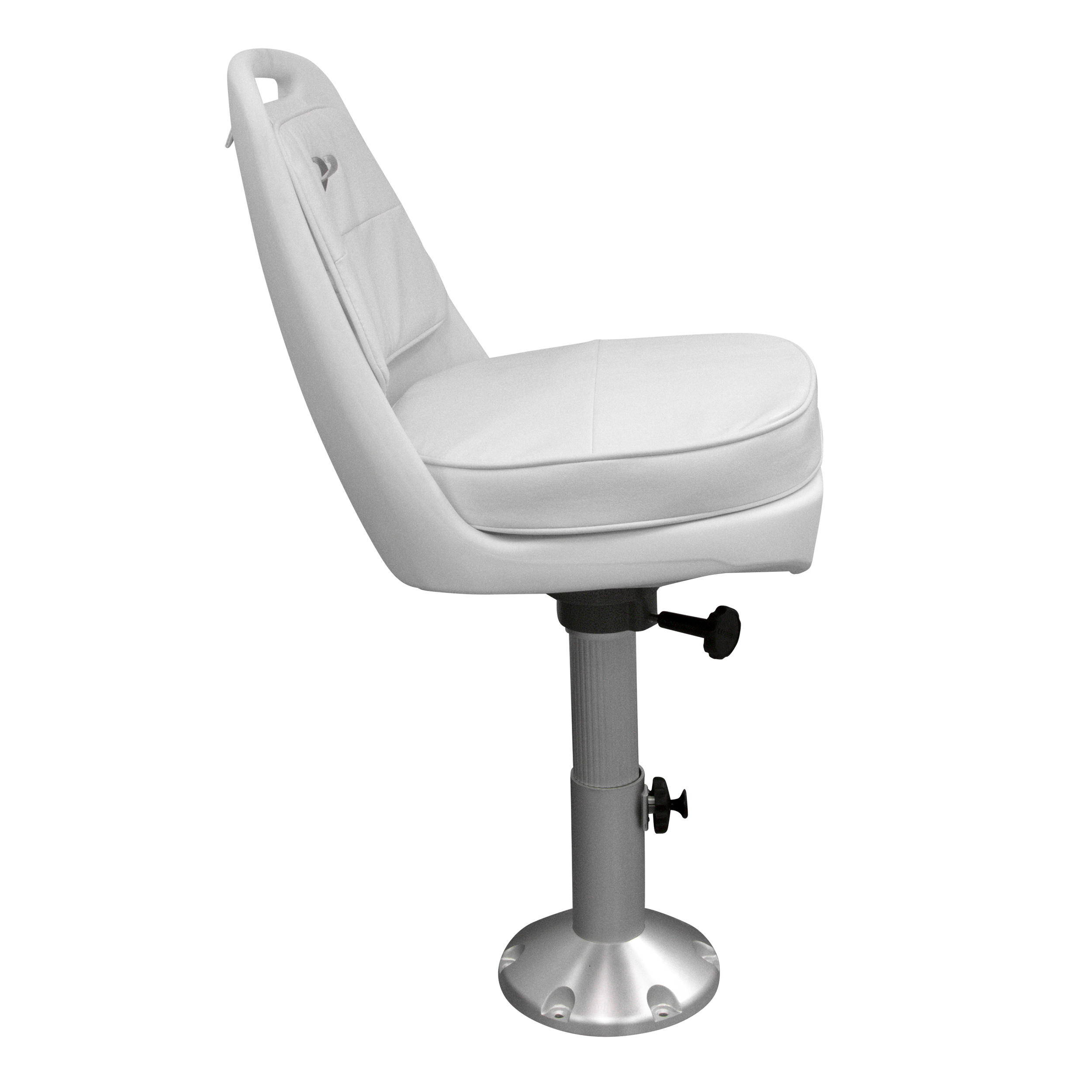

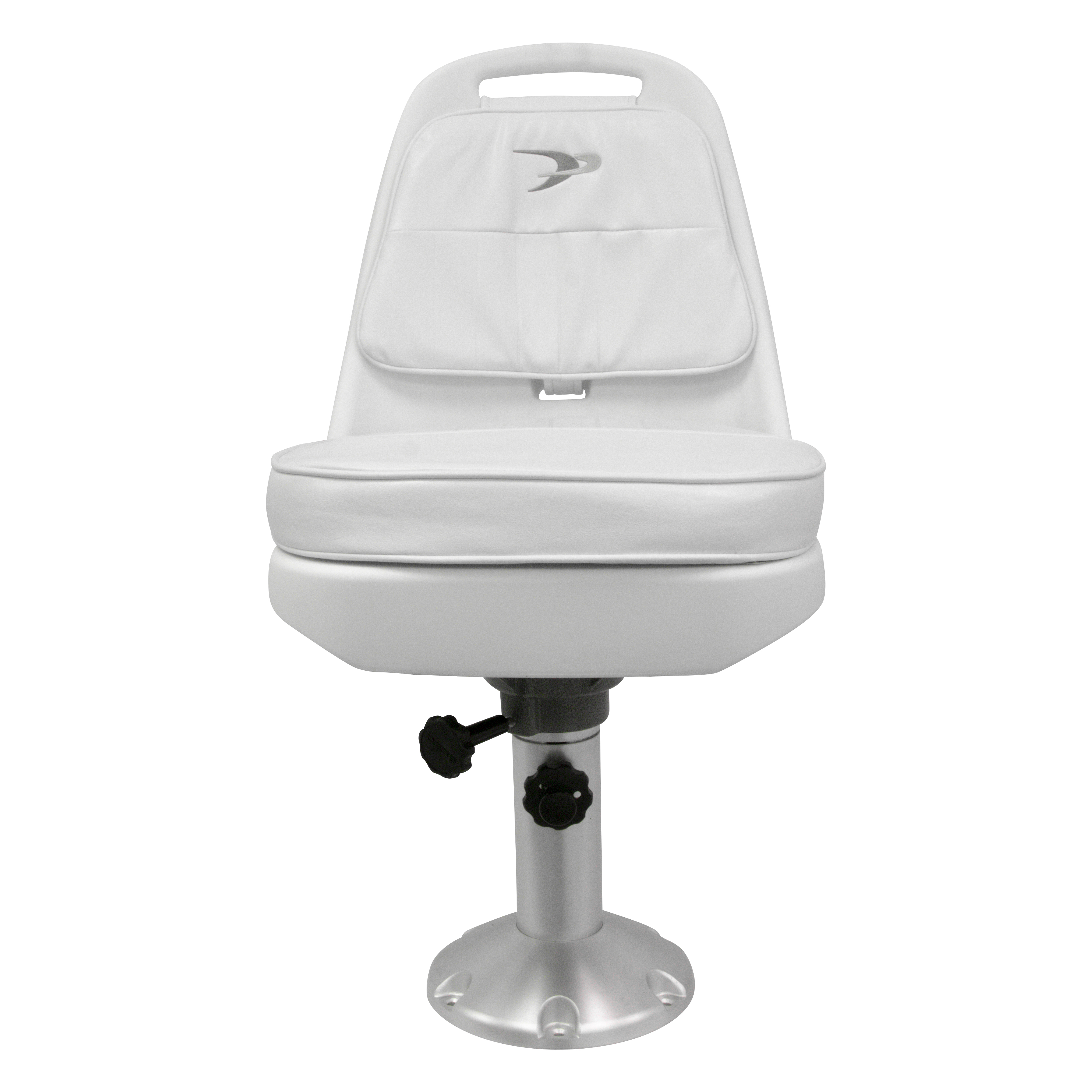

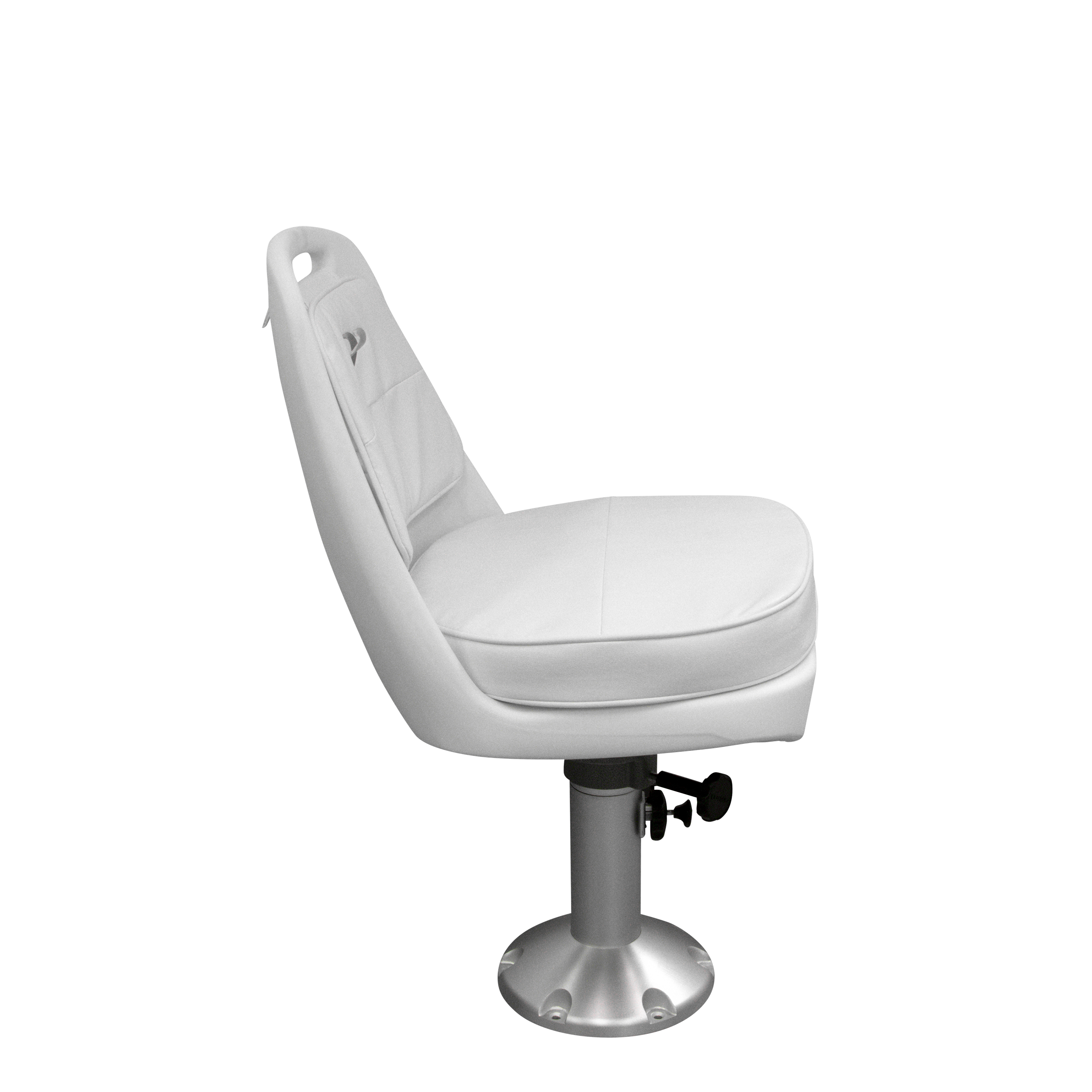

Wise 8WD013-7-710 Standard Pilot Helm Chair & Pedestal Combo features 8WP21-18S ABYC Class AD Driver 12″ to 18″ Adjustable Pedestal. Helm chair is constructed with thick wall rotational molded plastic frame with pre-mounted plastic injection molded mounting plate with T-Nut inserts. Snap on and off cushions have high compression foam padding with mesh underlay to expel moisture. Marine Grade vinyl with heavy duty welting, embossed vinyl surface and embroidered logo. Removable padded arm rest cushions. Pedestal features polished cast aluminum 9″ base plate with recessed knurled mounting holes. 2 7/8″ diameter thick wall extruded aluminum post. Cast aluminum seat mount swivels 360 degrees and locks down tight. Seat Dimensions: Seat Height: 18.25″, Seat Width: 17″, Seat Depth: 19.5″, Sitting Depth: 16.5″, Sitting Width: 17″; Overall Height with Pedestal: 30.25 to 36.25″. Original Equipment Replacement Cushions order Wise 8WD013-2-710.
Wise 8WD013-7-710 Standard Pilot Helm Chair & Pedestal Combo features a Wise 8WP21-18S ABYC Class AD Driver 12″ to 18″ Adjustable Pedestal; Includes Wise WD399 pedestal mounting plate

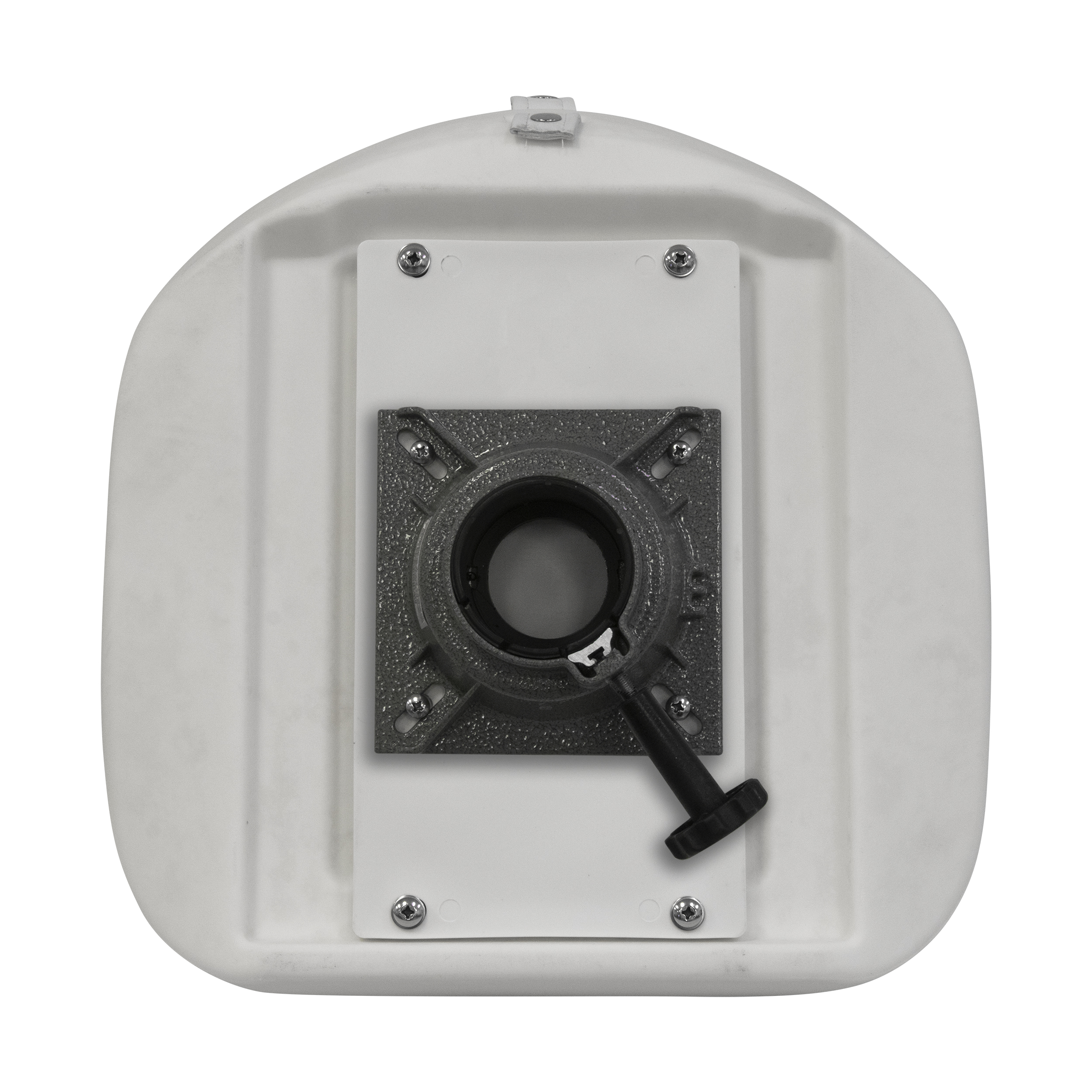

Roto-molded, high impact marine grade plastic external frame, includes a pre-mounted universal pedestal mounting plate with T-Nut inserts to fit standard seat mount or seat slider pedestal
Snap-on cushions with compression foam padding and mesh underlay to expel moisture; Heavy Duty Marine Grade 28 oz. vinyl withstands the effects of sun, heat, rain and soiling under normal conditions; Features heavy duty welting, embossed vinyl surface detail and embroidered logo
Pedestal is constructed of extruded and cast polished aluminum, with a thick walled, 2 7/8″ polished anodized aluminum post; Adjustable from 12″ to 18″ in height; Cast aluminum seat mount locks and swivels 360 degrees with adjustment knob; 9″ diameter base with recessed mounting holes
SEAT and PEDESTAL COMBO DIMENSIONS – Seat Height: 18.25″, Seat Width: 17″, Seat Depth: 19.5″, Sitting Depth: 16.5″, Sitting Width: 17″; Overall Height with Pedestal: 30.25 to 36.25″
