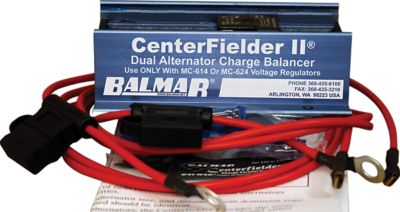

CENTERFILDR II-TWIN ENG 12/24V

Description

The Centerfielder II balances twin-engine charging systems by monitoring port and starboard voltage regulators. When both alternators and voltage regulators are working, the Centerfielder II automatically splits field output from the dominant regulator to both alternators, making it possible to charge a single house battery bank with the combined output of both alternators. Use only with Max Charge MC-612, MC-614, or MC-624 voltage regulators. Do not install in systems utilizing internally regulated alternators.

Balances charging in twin engine applications
Works in 12 and 24-volt applications
Isolates alternators and regulators when only one engine is running
Provides field current from a single regulator to both port and starboard alternators when both engines are in operation
Fused 12 ga. power wires (2) w/15A ATC fuse included
