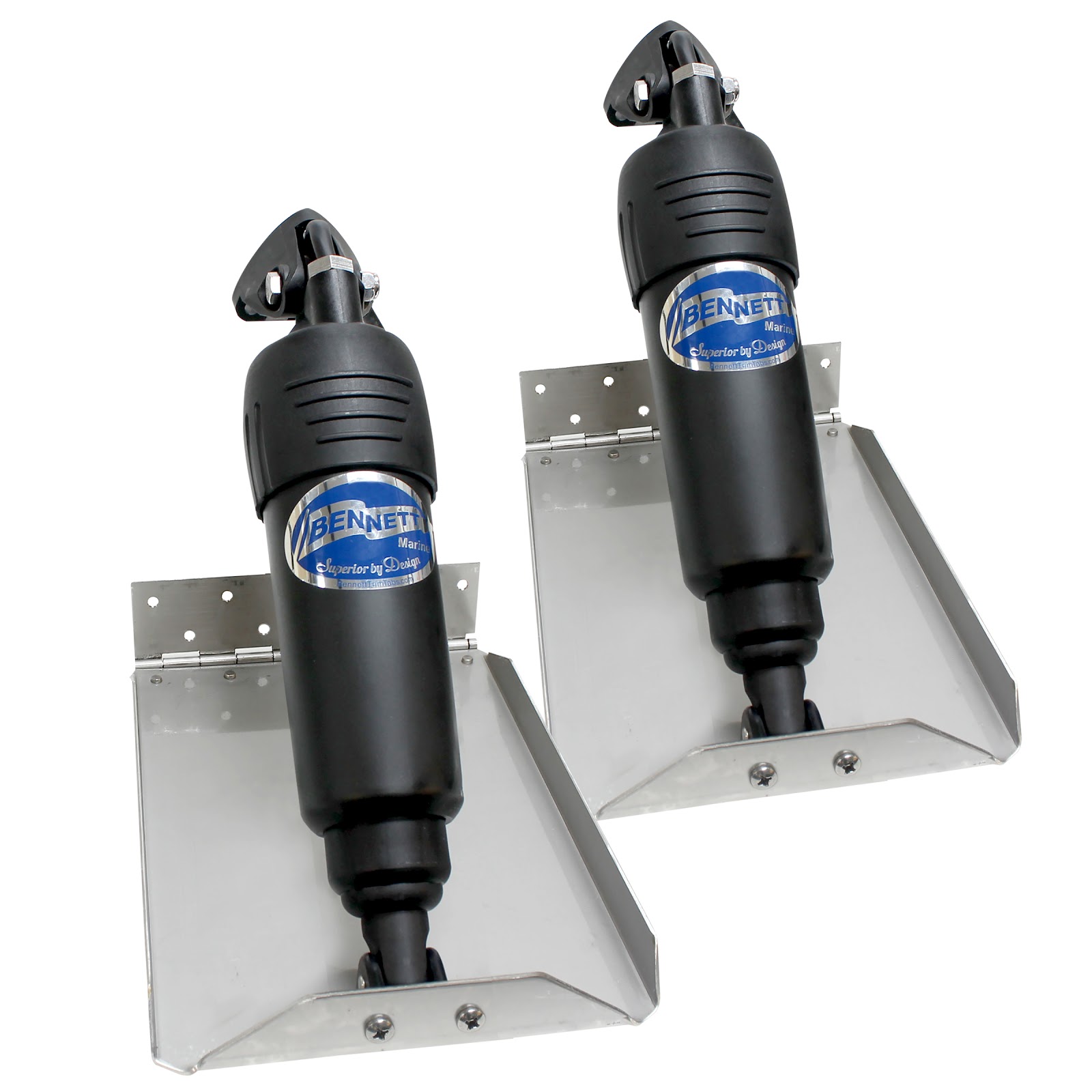

BOLT Electric Trim Tab Systems 6 X 12

$796.99 $701.35

BOLT 6 X 12 EDGE MOUNT

  • Vertical transom space required:
    • Fixed upper hinge (BEA2000): 13″
    • Adjustable upper hinge (BEA3000): 6.39″
  • Stroke: 2.5″
  • Length: 13.25″
  • Voltage: 12V
  • Connectors: Deutsch, DT Series, 13A
  • Working forces:
    • Actuation force: 750 lb.
    • Return Force: 750 lb.
  • Current draw:
    • 250 lb.: 10A
    • 750 lb.: 30A
SKU: 219-BOLT612ED Categories: , , Manufacturer:

Description

Balance loads, plane faster, increase efficiency and performance with Bennett BOLT Electric Trim Tab systems. BOLT is built to outlast any electric trim tab system on the market.



  • (2) Stainless steel trim planes (tabs) and mounting plates
  • (2) 20ft. harnesses with waterproof connectors (BAW2020)
  • (2)  12-volt actuators with 6ft. wire harnesses and waterproof connectors (BEA2000 OR BEA3000)



Additional information

Weight 21 lbs
Dimensions 17 × 14 × 7 in
