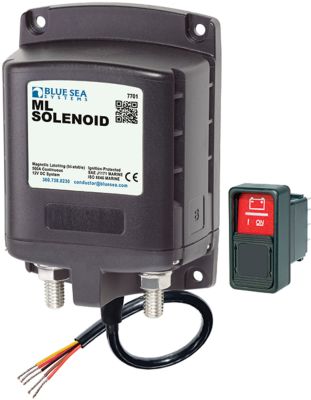

Blue Sea Systems 7701, ML-Series Solenoid, Bi-Stable, 500 Amp, 12V (1 MIN)

Description

500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required. Meets ISO 8846 and SAE J1171 external ignition protection requirements. IP66 – protected against powerful water jets.

Silver alloy contacts provide high reliability for switching live loads
LED output to remotely indicate switch state – requires optional LED
3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance
One-piece stainless flange nuts ensure safe and secure connections
Label recesses for circuit identification
Retail package includes 2145 Remote Control Contura Switch Specifications:
Voltage Maximum Operating (contacts): 32V DC
Voltage Maximum Operating (coil): 16V DC (12V DC), 32V DC (24V DC)
Amperage Operating Current when changing state: 7A DC (12V DC), 4A DC (24V DC)
Remote Control Switch Current: 100 mA
Live Current Switching: 300A @ 12V DC – 10,000 Cycles
