Description

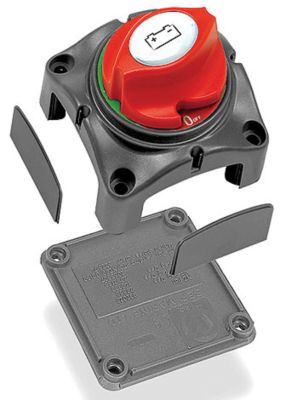

2 POSITION – ON/OFFPanel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.The 701 offers a contour lock system, allowing it to be a stand alone unit or locked together with other switches. It also features a control knob which cannot be removed while in the ON or OFF position, however can be removed by switching to an anti-clockwise 45º position. The control knob also features an interchangeable labeling system allowing a full range of applications. A rear cover insulates the terminals against any short circuits and ensures the switch meets ABYC requirements. Tin plated copper studs & nuts. Rated for 275 amps continuous, 455 intermittent, 1250 amps cranking.
Compact, lightweight
Removable key
Countersunk recesses for surface mount application
Standard 2-1/16″ (52 mm) hole cut out (same as standard gauge hole)
Inside: captive inserts for 3/16″ (4.8 mm) nuts providing full access for cables with no restrictions
Standard interchange label system
Molded in high temperature, fiber reinforced plastics
