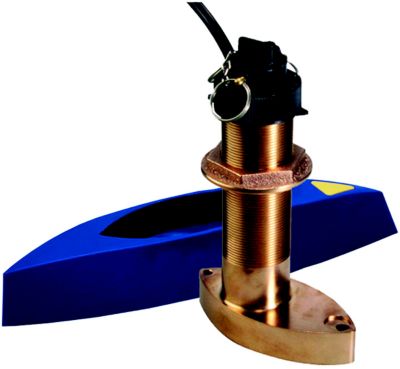

B744VL L/S TRANSDUCER

Description

The B744V offers great triducer performance in a single thru-hull package. The included fairing block ensures reliable performance at speed. The B744VL provides an extra 2.5″ of stem length to accommodate thicker hull installations. Compatible with DSM30 & DSM300 Sonar Modules.

Power (RMS): 600W
Max Depth (Ft): L: 1,200 / H: 700
Frequency (KHz): 50 / 200
Beam Width (L/H): 45°/12°
Records: Depth / Speed / Temperature
Cable Length: (Ft/M) 33′ / 10m
Deadrise / Transom Angles: 0-24°
