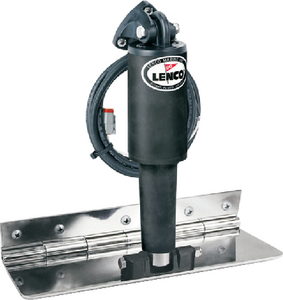

4X12 LTD SPACE EPOLISH TAB KIT

Description

Ideal for boats with a swim platform and/or ladder. They can be fitted to transoms that have a limited mounting area. Blades are 12 gauge, 304 SS with front of blade folded to provide a smooth trailing edge and 1/8″ diameter hinge pin. Fast response electric actuators for precise control. All units have Plug and Play connections and are fully submersible.
Kit includes:

• (2) 12-gauge stainless steel blades w/Electro-Polish finish


• (2) actuators with 6′ (1.8 m) lead and Deutsch connectors


• (2) 30133-103 20′ actuator extension wiring harnesses


• (2) 15085-001 upper mounting brackets with gland seal


• Lower mounting brackets


• Stainless steel mounting hardware

Size: 4″ x 12″
Finish: Electro-Polished
Volts: 12
:
:
:

KMS Part# LEN 15088101
DMP Part# 00-0379
Vendor # 15088-101
