Description
Pro Control Auto delivers industry-leading auto-levelling for unprecedented precision, control, and comfort on the water.
Standard Mount Trim Tabs—The original Trim Tab design, ideal for center console fishing boats to cuddy cabin cruisers.
Edge Mount Trim Tabs—Designed for boat applications where a lower actuator mounting height is desirable. Actuator mounts at the trailing edge of the blade giving it a 3″ (7.6 cm) lower mounting height on 12″ (30.5 cm) long blades. All edges are turned up for added strength and style.

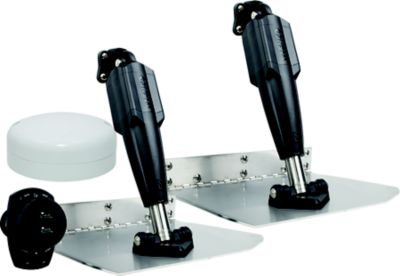

^Kits include:
(1) Pro Control Auto Keypad (15174-107)
(1) Pro Control Auto IMU (15180-001)
(2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
– Standard blades – with a 5/8″ (1.6 cm) flared trailing edge. OR – Edge Mount blades – with 1″ (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge) & 1/8″ (3.2 mm) diameter hinge pin.
(2) 2.25″ Stroke SD Pro Actuators, 10″ pin to pin (15187-001)
(6) Micro C Tee Connector (30267-001)
Micro C Power Cable with fuse and ground (30281-001)
(2) 6′ Micro C Drop cables (30269-002), (1) 15′ (30269-001) and (1) 25′ (30269-004) Micro C Drop cables
(2) 6 Pin Detusch to Micro C Actuator Network Adapter Cable (30377-001)
(2) 3′ (.91 m) Pro Control Actuator Power Pigtail (30378-001)
KMS Part# LEN 15184107
Vendor Part# 15184-107
