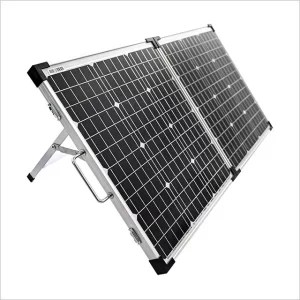

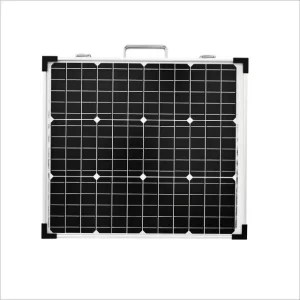

100W Mono Folding Solar Panel

$365.00

Order over $500? Apply for Financing
Apply Now >>


Model: SGF-100W
Brand: Sungold
Cells Efficiency: 22.40%
Surface material: ETFE
Unfold Dimension: 550*1043*30mm
Fold Dimension: 550*520*30mm
Solar cell: Mono
Warranty: 10 year

SKU: SGF-100W Categories: , Tags: ,

Description

Folding solar module

100watt Folding Panel (Germany Solar World solar cell),portable for motorhomes, caravans, RVs, campervans, cars, boats, yachts and other systems with 20V batteries.Fully adjustable to the height of the sun, increasing power output substantially

At least 90% power output ofter 10years,and 80% power output after 25 years

Different frame color is available(black,silver,golden,red)

polycrystalline folding solar modules is also popular

Features

1..Easy carrying :Storage and carry bag is not just a dust cover – it’s also a protective case made with a layer of foam which prevents accidental damages to the frame and glass.

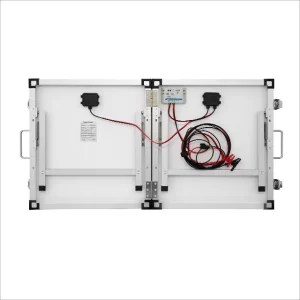

2.Easy to use:Complete folding solar kit solar charge controller,Anderson plug, battery clips and adjustable aluminium stand easy to charge.Includes an attractive and strong storage bag

3.High quality:High efficiency portable solar panels Waterproof junction box, tough sealed aluminium frame ensure the year after years of green power output.2 years on parts and materials, power output of greater than 90% guaranteed for 10 years.

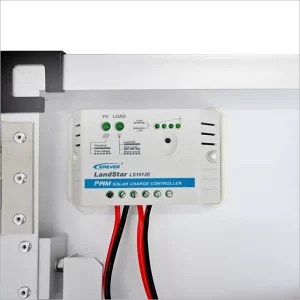

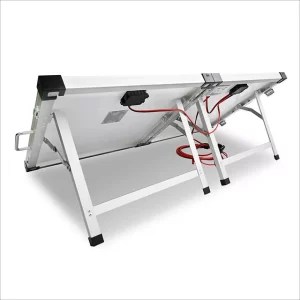

4.Overcharge protection:Advanced fully automated solar charge controller provides complete overcharge protection and supports several battery types. Our unique fold-out stand can be adjusted for the height of the sun, as well as the sun’s direction. This increases the energy harvest substantially.

Typical Applications

1. Trickle charger for 20v batteries

2. Maintenance charging for boats at mooring

3. Maintenance charging for emergency vehicles

4. 100W Folding Panel (Germany Solar World solar cell),portable for motorhomes, caravans, RVs, campervans, cars, boats, yachts and other systems with 20V batteries.





Maximum power(Pmax) 100W
Open-circuit voltage(Voc) 23.3
Voltage at Pmax(Vmp) 19.8
Short-circuit current(Isc) 5.94
Current at Pmax(Imp) 5.05
Cells Efficiency(%) 22.40%
The maximum system voltage 100VDC(IEC)
Power temperature coefficient -0.43%/℃
Voltage temperature coefficient -0.34%/℃
Current temperature coefficient 0.05%/℃
Output power tolerance ±3%
Operating Temperature -10~60℃
Solar cell brand A grade solar cells (158)
No.of cells and connections 36(3*12)
Unfold size 550*1043*30mm
Folded size 550*520*30mm
Warranty 10 year and service life25 years

Additional information

Weight 15 lbs
Dimensions 25 × 25 × 8 in
